2 Level Puzzle System
The 2 level Solution for Low clearances
The 2 level parking system allows for additional parking on a conventional parking space. With the typical clearnce of 12 feet 5 inches is an ideal product for low level clearance garages and retrofit solutions
2-Level Puzzle System (2LP Series) A versatile, space-saving mechanical parking solution designed for maximum efficiency in tight urban garages. Each space is independently accessible, and the system is fully modular — ideal for multifamily buildings, offices, and fleet operations.
Highlights:
Available in standard, tandem, and pit configurations Customizable heights for sedans and SUVs EV charger–ready (Level 1 or 2 on all spaces) Supports up to 14 spaces wide per group Flat pallet and galvanized options available Ideal for trained users or buildings with a valet/attendant Options Available: 2LP Standard – 2-level system with surface-level entry 2LP with Pit – Adds a lower level to increase capacity up to 60% 2LPT (Tandem) – Two rows of cars sharing one lift module 2LPT with Pit – Deep pit design for maximum density (up to 70% more capacity) Typical Applications: Multifamily residential, office buildings, fleet garages, tight retrofits.
| Number Upper Spaces | 2 to 14 |
| Number of Lower Spaces | 1 to 13 |
| Voltage | 208/120 20 to 30 Amps |
| Coatings | Gray Powder Coating/Galvanized |
| Max Weight | 5200Lbs/ 6000 Optional |
| Overall Width | 17′ |

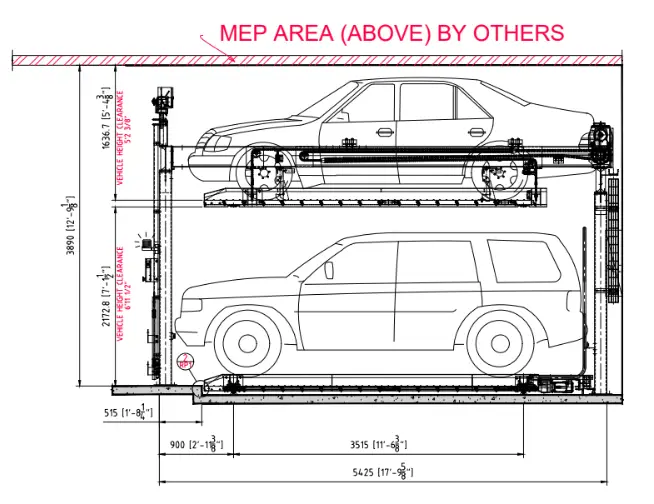

| Overall Height | 12′ 5″ ~ 12′ 10″ |
Try the 2-Level Puzzle System
Enter a Space Number – Type in 101, 201, or 202 and click “Call Space.” The system will automatically move platforms so your vehicle is ready to access.
Retrieve or Park with Ease – Watch as the gate opens and the platform lowers into position. Once finished, press “OK (Close Gate)” to reset and prepare for the next vehicle.
